CHASING M2 PRO 200m Undervands drone

CHASING M2 PRO 200m Undervands drone
Der findes en masse tilbehør som kontrolstation og meget mere til denne industri udgave.

LAGERSTATUS
BESTILLINGSVARE
Forventes igen 28 November
+7 DAGS LEVERINGSTID

SKRIV PÅ SUPPORT@SKYPILOT.DK ELLER RING 31318048(11-17 HVERDAGE)
FOR ET TILBUD PÅ ET GOD PAKKE TIL GOD PRIS

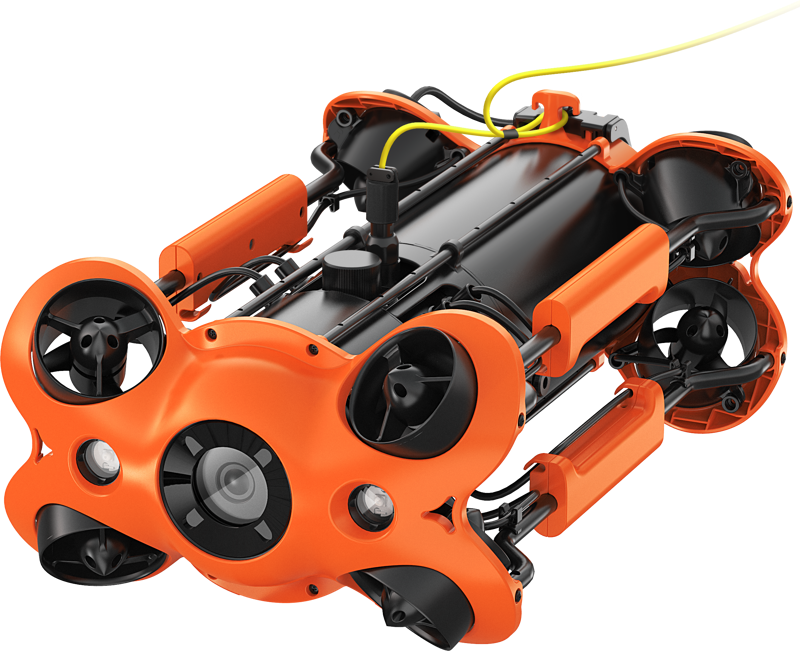

Chasing M2 Pro has 8 vectored thrusters layout which allows OMNI movement in all directions. Compared to the CHASING M2, the M2 Pro motor has been upgraded by 50%. The maximum speed is 4 Knots, depth is 150 meters and the maximum horizontal radius is 400 meters (with optional 400m cable).

M2 pro support AC and battery hybrid power supply to achieve unlimited battery life. Not only compatible with sophisticated attachments such as Grabber Claw, Floodlight and laser scaler etc, but also compatible with Control Console (High-brightness Screen), docking station, USBL underwater positioning, 700Wh battery, multibeam sonar, Auxiliary Camera and other M2 Pro Exclusive Enhanced Accessories.

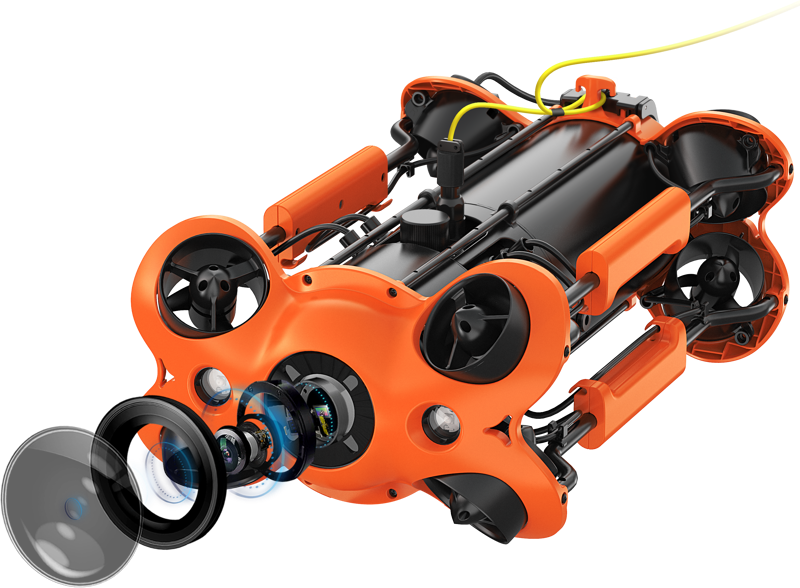

CHASING M2 Pro oﬀers a built in 4K/ 1080p and 12 megapixel EIS image stabilization camera, 4000 lumen LED lights, removable battery and removable Micro SD memory card. The aluminum alloy compact body (weights less than 6KG allows single person operation and quick-deployment in 3 minutes.

The CHASING M2 Pro is your portable, easy use and reliable light industrial underwater ROV.

Cable included is 200m,
but 300m or 400m is also possible.

CHASING M2 PRO

Max Depth

490 ft (150 m)

Video Bitrate

60 M

Tether Length

656 ft / 984 ft / 1312 ft

SD Card Storage

128 G

Video Resolution

3840 x 2160 (UHD)

Photo Resolution

12 M

Drone
Size	18.9" x 10.5" x 6.4" (480 x 267 x 165 mm)
Weight	≈5.7 kg
Max Depth	490 ft (150 m)
Max Speed	4 Knots (2 m/s)
Runtime	Up to 4 hours
Battery	300 Wh
Working Temperature	-10℃~45℃

Control Console
Size	19" x 14.8" x 7" (484 x 375 x 178 mm)
Weight	8 kg
Dispaly	1920 x 1080, 1000 cd/m2
Working Temperature	-10 ℃ ~ 45 ℃
Power Supply	21.6 V
Interface	RJ45 x 2, USB 2.0 x 2, QC3.0 USB x1, AC Input x 1, AC output to ROV x 1

Camera
CMOS	1/2.3 inch
Lens	F1.8
Focus	1m
ISO Range	100-6400
FOV	152°
Max Resolution	12 Meg pixel
Format	JPEG/DNG
Video	UHD: 38402160 (4K) 30fps FHD: 19201080 (1080p) 30/60/120fps
Slow Motion	720p: 8x (240 fps) 1080p: 4x (120 fps)
Time Lapse	4K / 1080p supported
Video Bitrats	60 M
Video Format	MP4
SD Card	128 G

Remote Controller
Size	6.3" x 6.1" x 4.9" (160 x 155 x 125 mm)
Weight	685 g
Battery	2500 mAh
Runtime	≥ 6 hours (depending on the environment)
Wireless	Wi-Fi supported
HDMI	Support
Handle Spring	Maximum support 10 inch
